7-Inch LCD Screen Separator Machine, Manual Screen Separation Platform with Adjustable Temperature, Heating Plate and Dual Vacuum Suction for Phone Repair (7 Inch)

Operation Method1. Turn on the power: plug the power cord into the power connector at the back of the separator and turn on the power switch.2. Preset temperature: press the SET key to preset the temperature, press the up-regulation key to set the temperature at about 85 degrees, and press ENT to save.3. Prepare wire puller: Equipped with a wire puller to separate the screen.4. Place the silicone anti-slip pad: placed on the panel of the separator, and align the pad with the panel hole position.5. Screen separation preparation: put the screen to be separated into the center of the panel, press the start button to begin vacuum adsorption, and ensure that the screen is sucked.6. Start cutting screen: screen preheats for 3-5 minutes to start cutting.7. After separating the burst screen, turn off the power to separate the machine, if it is dry glue, you can directly tear it down by hand, such as water glue will need to remove with the help of a blade and glue removal solution.SpecificationMaterial: Iron, AluminumColor: Black, RedMounting Type: Free Standing, TabletopInput: AC100-110VPower: 250WPlug Type: US PlugApplicable Cell Phone Screen: 7 inches or LessTemperature Range: 40-120℃/104-248℉Product Size: 13.5*24.2*14.2cm/5.31*9.52*5.59inHeated Surface Size: 19*8cm/7.48*3.15 inPackage Size: 32*22*18cm/12*8.66*7.09inNet Weight: 2.6kg/5.73lbsGross Weight: 3kg/6.61lbsPackage Included1* LCD Screen Separator Machine1* Power CordOther Accessories for AssemblyNotesPlease allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

• 【Dual Vacuum Pump System】Equipped with two powerful built-in vacuum pumps that generate strong, stable suction to securely hold mobile phone screens in place during the separation process. This ensures the device remains fixed and aligned

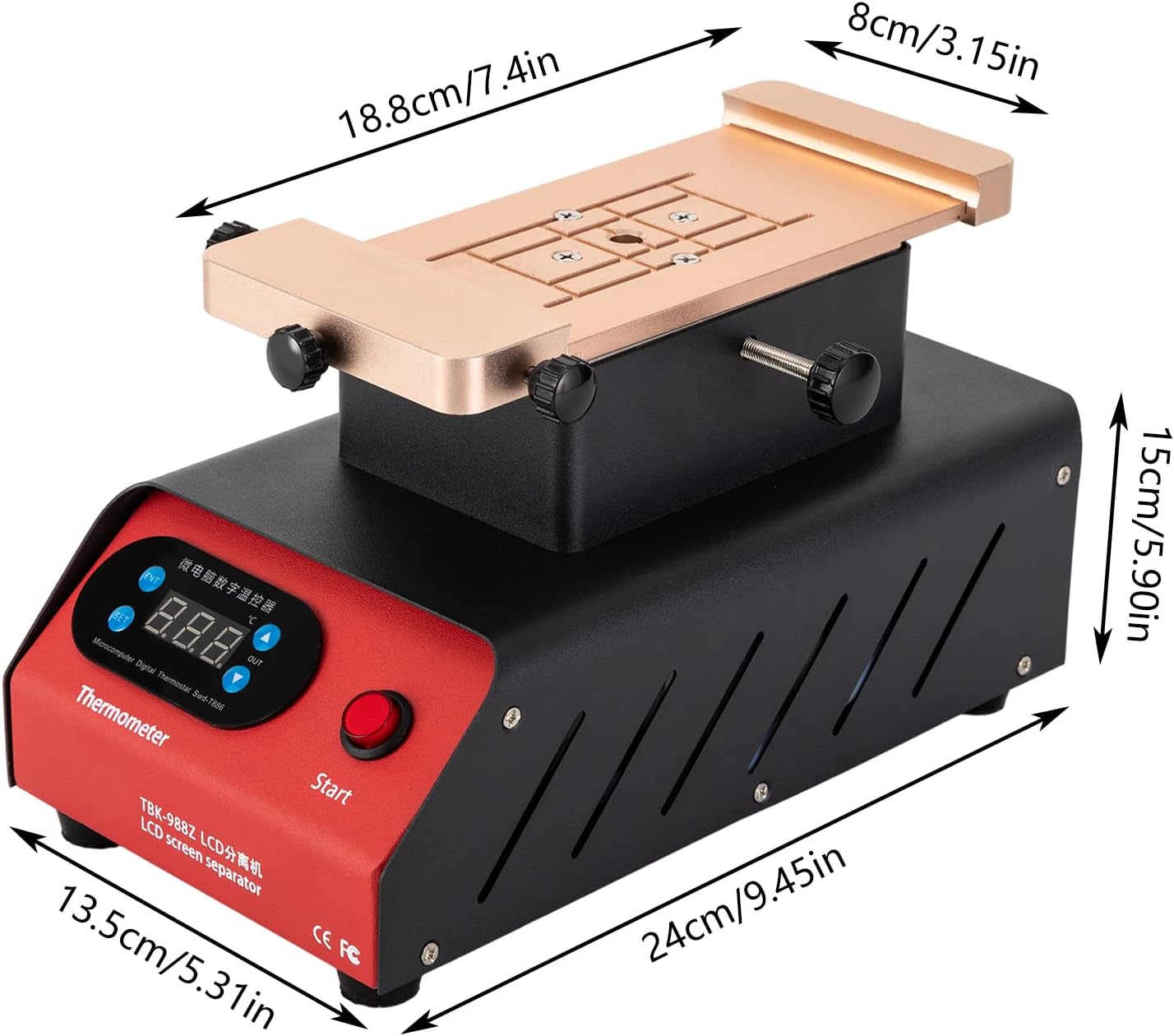

• 【Adjustable Heating Plate】Features an aluminum heating plate that provides fast, even heat distribution across a 7.48 x 3.15-inch area. The digital temperature control allows precise adjustment from 104°F to 248°F
• 【360-Degree Rotatable Design】The heating plate can rotate a full 360 degrees, offering flexible positioning and easy access from any angle. This user-friendly design enhances workflow efficiency, especially when working on different phone models
• 【Compact Safe Construction】Built with durable iron and aluminum for long-lasting performance, the machine includes safety features such as side ventilation holes for heat dissipation, a rear fuse for overload protection, and ergonomic screws
• 【Easy to Operate and Clean】Designed for straightforward operation with clear controls and an included power cord. The smooth surface allows for quick cleaning with a cloth, making it a practical and low-maintenance tool for repair shops and DIY users
